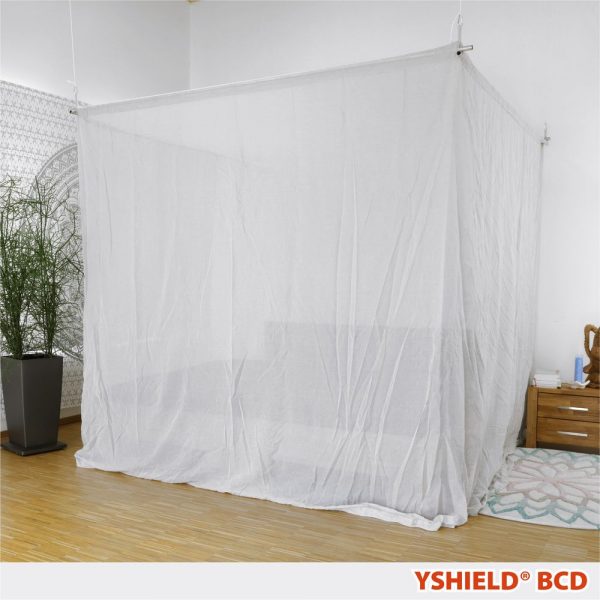

Shielding Bed Canopy | Silver-Cotton
$2,195.00 AUD Incl GST
Made from YShield’s Silver-Cotton fabric with 42 dB attenuation at 1 GHz. Box-shape fits double, queen and king beds. Width: 220 cm, depth: 220 cm, height: 220 cm. Please ask for a quote if you would like a different size.
This item is made to order and as such is not returnable unless faulty. Please check delivery timeframes before ordering. If you wish to see a sample of the fabric before ordering please contact us.
Description
Properties
SILVER-COTTON is a semi-transparent cotton fabric with a high silver thread content for the protection against high-frequency (HF) and low-frequency radiation (LF).
Special features: With 42 dB attenuation at 1GHz this fabric has an outstanding price/performance ratio.
- Width: 220 cm, depth: 220 cm, height: 220 cm (+/- 5% tolerance)
- Entrance: two overlapping openings
- Installation: Suspension from the ceiling at four points or support from underneath
- Rod pockets sewn at the top of each side. To stabilize the shape you can insert poles (not supplied).
- High transparency at very high screening attenuation
- Shields LF electric fields
- Textile characteristics: Washable.
- Quality grade: High
Please choose carefully. This item is a special order and imported from Europe. As such we do not offer returns or refunds unless the product is faulty from manufacture. If you wish to see a sample of the fabric before ordering please contact us.
Silver products
- Silver fabrics have a limited durability, depending on the frequency of movement.
- Our silver fabrics do not contain any nano silver, but a thick metallic silver coating.
Technical data
- Box shape for more room inside
- Size: width 220 cm, depth 220cm, height 220cm
- Attenuation: 42 dB at 1 GHz. Please check the table above for attenuation of other frequencies.
- Color: Gray/Beige
- Raw materials: 82 % cotton, 14 % nylon, 4 % silver
- Dimension stability: +/- 1 %
- Surface conductivity: 6 ohm / inch (2.54 cm)
Care instructions
- Gentle cycle at 30°C
- Iron without steam at degree 1
- No drying in tumble dryers
- No bleaching
- No chemical dry-cleaning
- Wash only with our special washing detergent TEXCARE, without enzymes or bleaching agents
Shielding attenuation HF & LF
This product shields high frequency electromagnetic fields (HF). Unless otherwise stated, the indicated dB-values apply to 1 GHz. Measurement from 600 MHz to 40 GHz according to standards ASTM D4935-10 or IEEE Std 299-2006.
This product with an electrically conductive surface shields low-frequency alternating electric fields (LF).
This product does not need to be grounded.
Laboratory & expert report of shielding attenuation up to 40 GHz
YShield have invested in their own professional EMV laboratory. They not only use it to create laboratory screening reports but also to check each batch. Additionally, they have all their products checked by an independent, well-respected expert. Double checked for twice the safety. Please find links to the reports below.
Ready for 5G
Some companies offer “special” 5G-products. This products shields 5G-frequencies, even without advertising this! Find two gray bars in all shielding diagrams with the 5G frequency spectrums FR1 (600 MHz – 6GHz) and FR2 (24 GHz – 40 GHz).
Additional information
| Weight | 2.2 kg |
|---|---|
| Dimensions | 37 × 35 × 16 cm |
